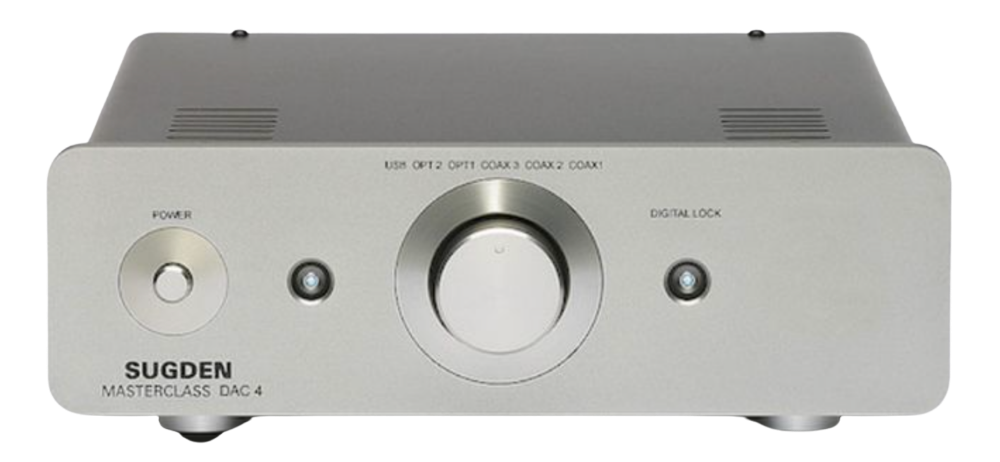

Sugden Audio Masterclass DAC-4 Digital to Analogue Converter
- Condition:
- New
- Availability:
- Usually Ships in 48-72 hours
- Shipping:
- Free Shipping
Description
Meet the DAC-4
A Masterclass Digital to Analogue Conversion
The Masterclass DAC-4 offers a well judged alternative to the plethora of DAC’s available in the current market. With sound quality at the top of Sugden’s list, ‘Rescuing music from technology’ could not be a more appropriate achievement.
Instead of accepting and using the latest digital trends, Sugden have produced a product meticulously engineered to play music. With Sugden’s own conversion circuits and data reformatting, a near analogue experience can be enjoyed.
The DAC-4 is without limitations and has no over sampling or digital filtering.
Product Features
- Outputs -One RCA stereo analogue & One digital coaxial.
- Input - Three SPDIF coaxial, two SPDIF optical & One USB type B & Mains IEC socket.
- Front panel controls -Power switch, power lamp, input selector switch, digital lock lamp.
Technical Specifications
Output
2.15Volts
Frequency response
20Hz – 20kHz +/-1.50dB points
Signal to noise
– >80dB
Gross Weight
5 kg
Dimensions
90mm x 250mm x 330mm (HWD)
Digital input
SPDIF 16-24 bit word length, with sample rates from 32 to 96kHz*.
Power consumption
12 Watts.
*24/192 file compatibility requires a re-set of the DAC-4 prior to connecting to the source component.
**This information has been obtained from Manufacturers website. We advise that Features & Specifications are subject change from Manufacturer without notice.
E&OE
