Ruark Audio R810 Hi Fidelity Radiogram

Alongside the iconic radiograms of yesteryear, R810 has been designed to enhance your life and home. With its outstanding connectivity and sound, R810 is fully capable of being the focal point for all your home entertainment needs. Also like a fine piece of furniture R810 is an object that you will be proud to display in your home and a product that you will cherish and enjoy for years to come.

A Musical Instrument for Music Lovers

Not all instruments are created the same and the best are crafted by artisans who understand the importance of materials and techniques in creating instruments that are beautiful to play and hear. The enjoyment of music is one of life’s greatest pleasures and like the finest instruments, R810 has been designed and crafted to deliver stunning sound that will connect you closer to the music you love

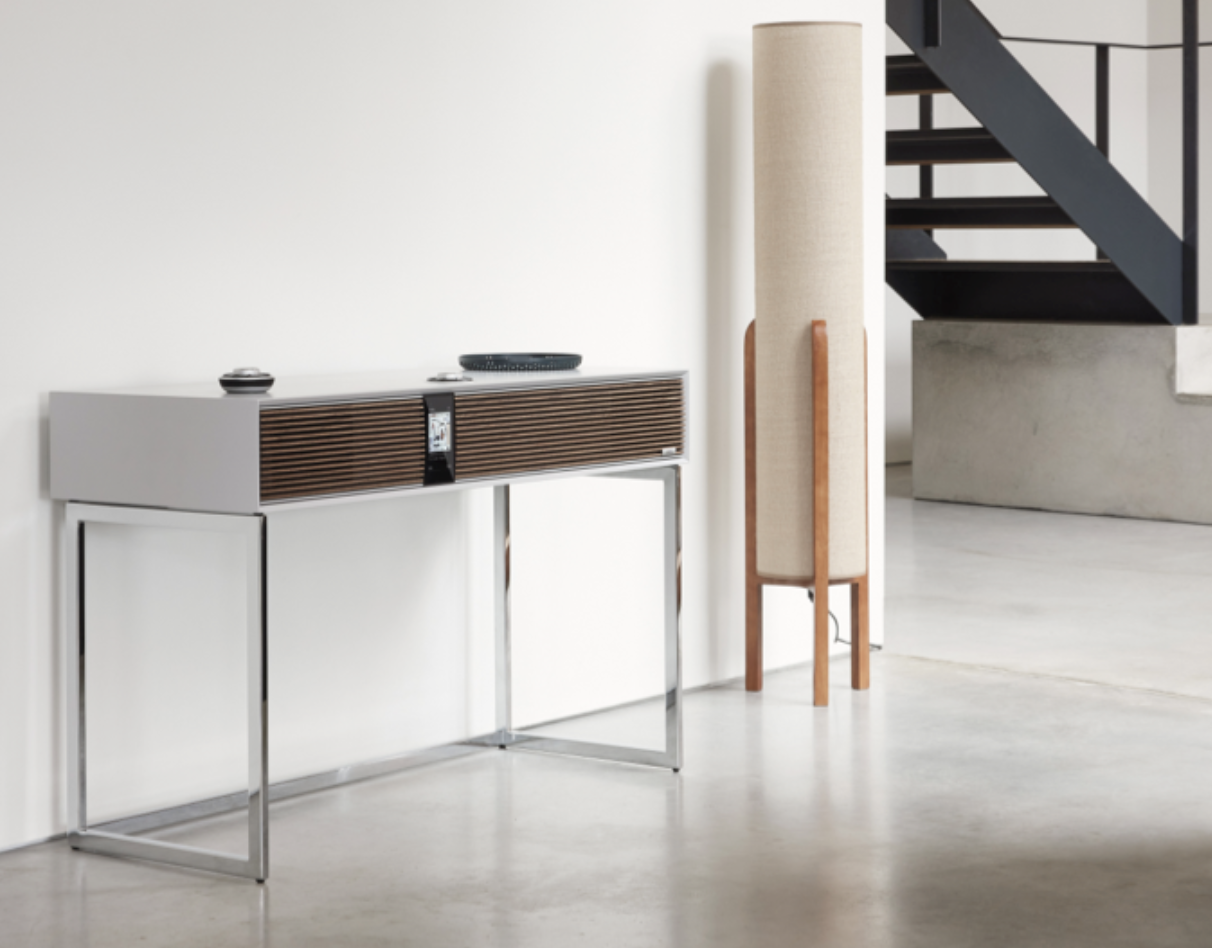

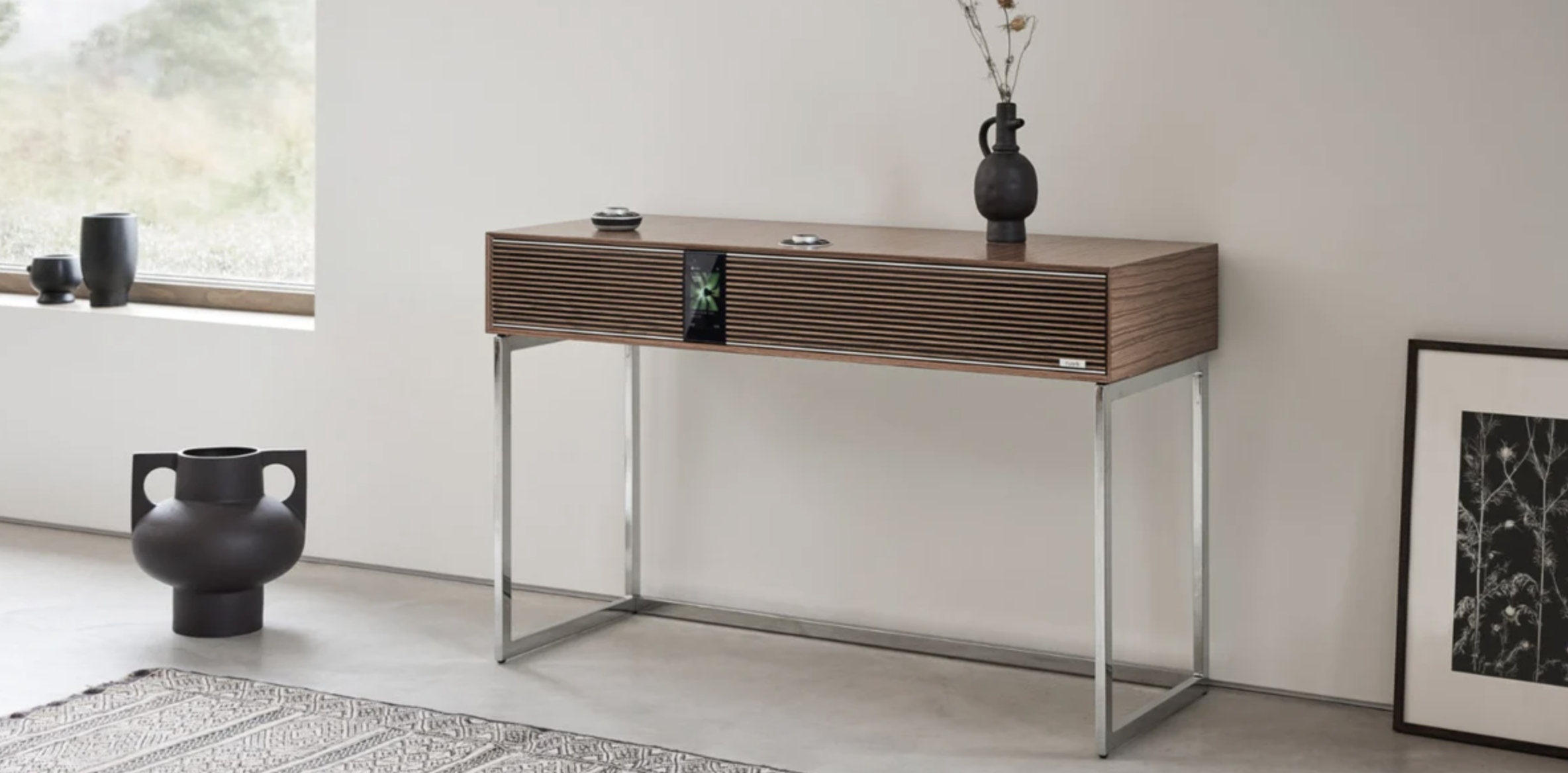

An Object to Desire

Like the iconic radiograms of yesteryear, R810 is a product that has been designed to be seen. Enhancing R810’s aesthetics is the special material we’ve selected for the handcrafted grille and veneered cabinets. Made from sustainable woods that are spliced and reconstituted, the resulting grain patterns closely resemble slow-growing hardwoods but without the ecological impact. Combined with the precision formed trims and polished chrome stand, R810 radiates sophistication and like the finest furniture, it is an object that you will cherish and be proud to have on display in your home.

A Beautiful Display

Many systems today rely totally on smartphones and suchlike to provide information on settings and source, but with R810 the hi-resolution display provides all the information you need right in front of you and brings the look of R810 to life. With its portrait orientation the display intentionally emulates the way we view music applications on our phones and in conjunction with our new RotoDial controller makes R810 second nature to use. The intensity of the display in standby and active mode is also fully adjustable to suit your needs.

What Lies Beneath

We’re passionate about aesthetic design, but we know that it’s what lies beneath that is fundamental in creating great sound. An example of this is R810’s enclosure where inside it has been carefully divided into compartments, each which have been optimised for their intended task. Twin bass reflex compartments house our NS+ bass-midrange units and silk dome tweeters and the long throw subwoofer is housed beneath, in an infinite baffle enclosure for superbly controlled and extended bass.

Driving the system is a powerful five channel Class A-B discrete component amplifier. Five separate channels means that we can precisely control the response of each drive unit and with the latest sound processing technologies, music is produced with effortless ease with a stunning soundstage that will immerse you and fill your home with exquisite sound.

Connection Bliss

R810 is a fully integrated entertainment system and provides all the connectivity you are ever likely to need. Streaming is its forte, but if you want to play records and CDs, these mediums can also be enjoyed by connecting a turntable to the phono inputs or a CD-ROM drive to the USB-C socket. Additionally with its HDMI ARC/eARC input, you can connect R810 to most modern TVs, taking the enjoyment of watching films to another level with its dynamic, spacious sound.

With its ability to play the highest quality audio streams, R810 opens a whole world of music and entertainment. Spotify Connect and TIDAL Connect are built-in and with the addition of Apple AirPlay and Chromecast built-in, you can stream and control directly from apps such as Apple Music, BBC Sounds, Amazon Music, Qobuz and many more. In addition you can also build a flexible multi-room system, linking R810 with other AirPlay and Chromecast compatible devices, including our own R410.

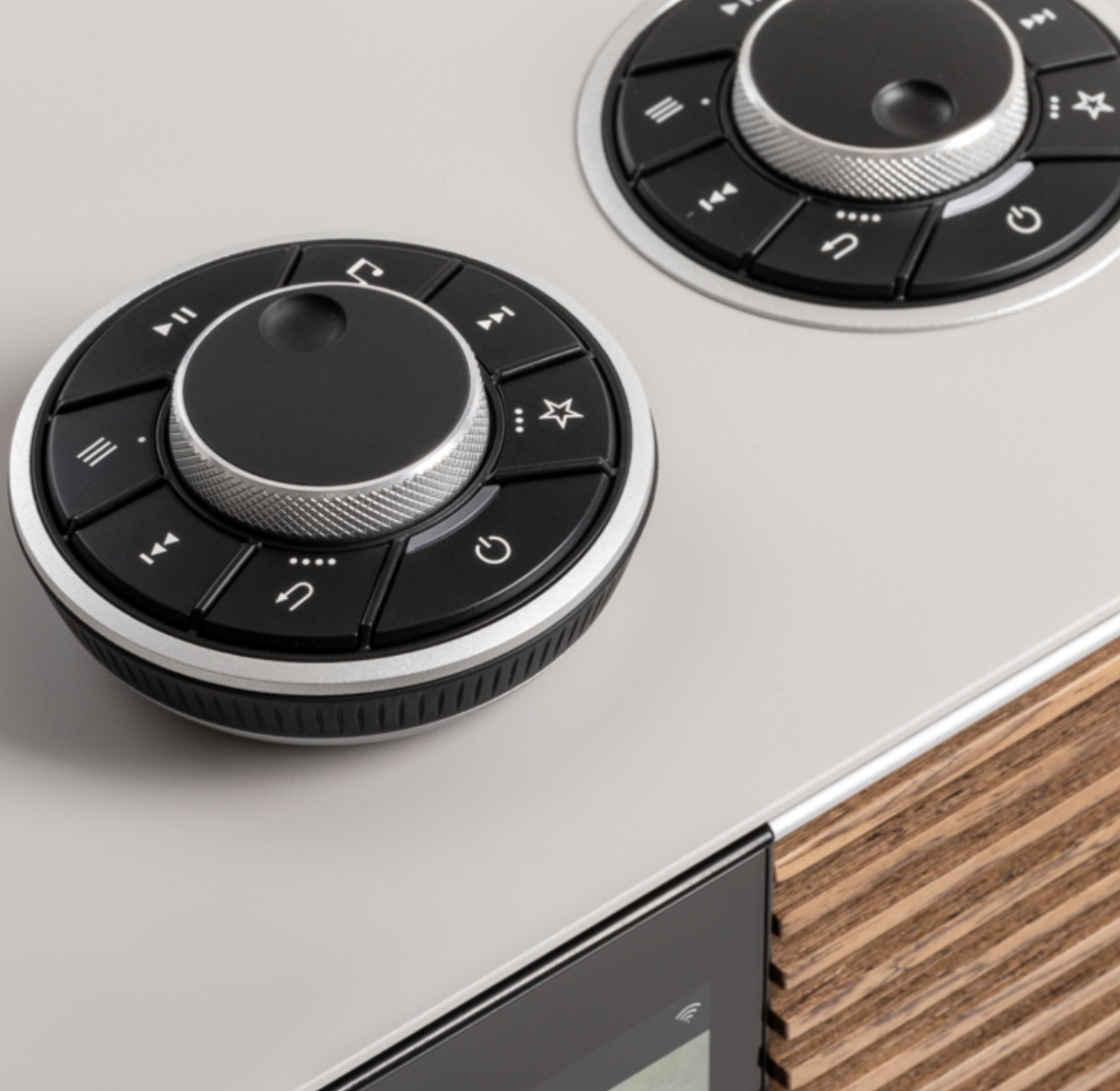

Tactile Controls

With touch-screens seemingly controlling everything these days, in our opinion you still can’t beat the positive click of a button or satisfying turn of a dial, particularly when it comes packaged as something unique and beautiful like our RotoDial control system, which for 100 Series has been improved and enhanced.

Included with R810 is a matching rechargeable remote. Bluetooth connectivity means that aiming is not required during operation and looking so good, it’s an item that you will want to leave out on display for everyone to touch and see.

Technical Specifications

Audio

Frequency Response
30Hz - 22kHz

Speakers
2 × Ruark 27mm Silk Dome Tweeters
2 × Ruark 100mm NS+ Mid/Bass Drivers
1 × Ruark 200mm Long Throw Subwoofer

Amplifier
180 Watts RMS Discrete 5-channel Class AB

Enhancements
Adjustable Treble, Bass  & Sub Settings
Stereo+ Audio Enhancement
Adaptive EQ provides ideal sound according to volume

Cabinet Type
Tuned bass reflex stereo enclosures and sealed subwoofer enclosure

Connectivity

Radio
Internet Radio, DAB+ and FM with RDS (87.5-108MHz)

Multi-Room Capable
Via Apple AirPlay and Chromecast built-in

Wi-Fi
802.11 a/b/g/n/ac/ax, WPS2, WEP, WPA, WPA2

Streaming
Apple AirPlay and Google Chromecast built-in

Built-In Music Services
Spotify Connect and TIDAL Connect

Supported Music Services
Amazon Music, BBC Sounds, Deezer, Qobuz and many more

Bluetooth
5.1, aptX HD, SBC, AAC, BLE, A2DP

Ethernet
RJ45 connector 10/100 Mbps

DLNA
UPnP™ DLNA media server compatible

CD Player
CD playback via external USB CD drive (optional)

HDMI
ARC & eARC

Line Input
Stereo RCA input (up to 2.3 Vrms)

Turntable Input
Stereo RCA input with MM phono gain stage

Optical Input
Toslink digital input up to 24-bit 192kHz

USB-C
Playback Port

Aerial Connector
75Ω F-type

Supported Audio Formats

MP3
up to 48kHz 320kbps

AAC
formats up to 96kHz 320kbps

FLAC, ALAC & WAV
up to 32-bit 384kHz

WMA
formats up to 48kHz 320kbps

WMA 9
up to 48kHz 256kbps

General

Power Input
100-240VAC, 50-60Hz, 2.5A

Power Consumption
<2W standby. 10W idle

Removable Power Cable
Upgrade to an IsoTek Power Cable for better performance

Available Finishes
Fused Walnut Veneer or Soft Grey Lacquer

Dimensions (cabinet) - W x H x D
1,000 x 152 x 400mm

Dimensions (inc. stand, dial and mains connector) - W x H x D
1,000 x 650 x 435mm

In the Box

• 2m Power Cable
• Polished Chrome Frame Stand
• 2 × Polished Chrome Bar Legs for mounting R810 on existing unit
• Quick Start Guide
• RotoDial BT LE Rechargeable Remote
• Telescopic Aerial & Spanner
