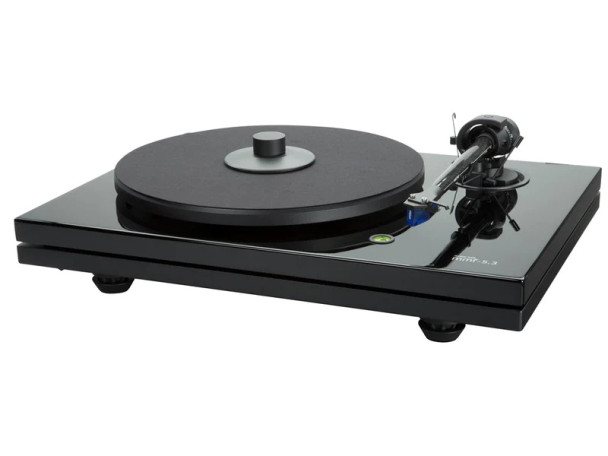

Music Hall MMF 5.3 Turntable

Meet the MMF 5.3 Turntable

The 2-Speed Belt Driven Audiophile Turntable employing the unique dual-plinth construction originated by Music Hall.

Distinctive Design

The distinctive design isolates the critical sound reproducing components; platter, main bearing, tonearm, and cartridge on the top platform from the motor, switch, wiring, and feet which are mounted on the bottom platform.

A Complete Package

Viso-elastic cones separate the two platforms and provide vibration damping, and the MMF-5.3 comes complete with an Ortofon 2m Blue cartridge.

Product Features

• music hall’s unique dual-plinth construction
• gorgeous high-gloss piano black lacquer finish
• top tier 9” carbon fibre tonearm
• counterweight’s center of gravity is level with the stylus tip, is decoupled from the arm, and acts as a resonance damper
• DC synchronous motor for superior speed stability, separately isolated on the lower platform
• two-speed stepped motor pulley for 33 1/3 and 45 rpm
• Ortofon 2M Blue cartridge with replaceable nude elliptical diamond stylus
• the cartridge supplied is properly aligned and mounted
• precision stainless steel main bearing sheathed in Teflon® for noise-free fluid operation
• dynamically balanced alloy platter with soft felt mat screw-on record clamp, high quality gold RCA connectors and detachable phono cable
• special vibration damping adjustable feet
• built-in round spirit level for proper leveling
• low noise fully manual belt-drive design
• excellent instruction manual and easy assembly
• dust cover and 45 rpm adapter included

Ortofon Hi-Fi 2M Blue Moving Magnet Cartridge

The Ortofon 2M Series is designed for precise and accurate retrieval of the information in the record groove.

The 2M Series is developed in conjunction with the Danish Industrial designer Møller Jensen Design – the same designer who designed the award winning MC Jubilee and Kontrapunkt series. Inspired by the facets of a diamond, whose contours gracefully trace the grooves on a record’s surface, the 2M’s handsome elegance establishes a great combination of form and functionality.

2M Blue Features

• An improved engine, which provides an increased output of 5.5mV and an optimised sound reproduction and a high level of sonic accuracy
• Nude Elliptical diamond and split pole pins with a copper wire
• Adds more dynamics and resolution, sounds more open and reproduces more details than 2M Red
• The 2M Series provides excellent compatibility when used with a wide variety of phono preamps.

Technical Specifications

power Supply
15V / 0-0.8mA DC
universal power supply

power connection
100 – 240 Volt, 50 or 60 Hz

standby power consumption
< 1 W

speeds
33 1⁄3 rpm, (manual change to 45 rpm)

Wow and flutter
± 0.10 %

speed deviation
± 0.80%

effective tonearm length
230 mm

tonearm weight
250 g (without counterweight)

effective tonearm mass
8.5 g

Overhang
18 mm

dimensions (w x D x H)
45 x 33.65 x 14 cm

Weight
10.09 kg
