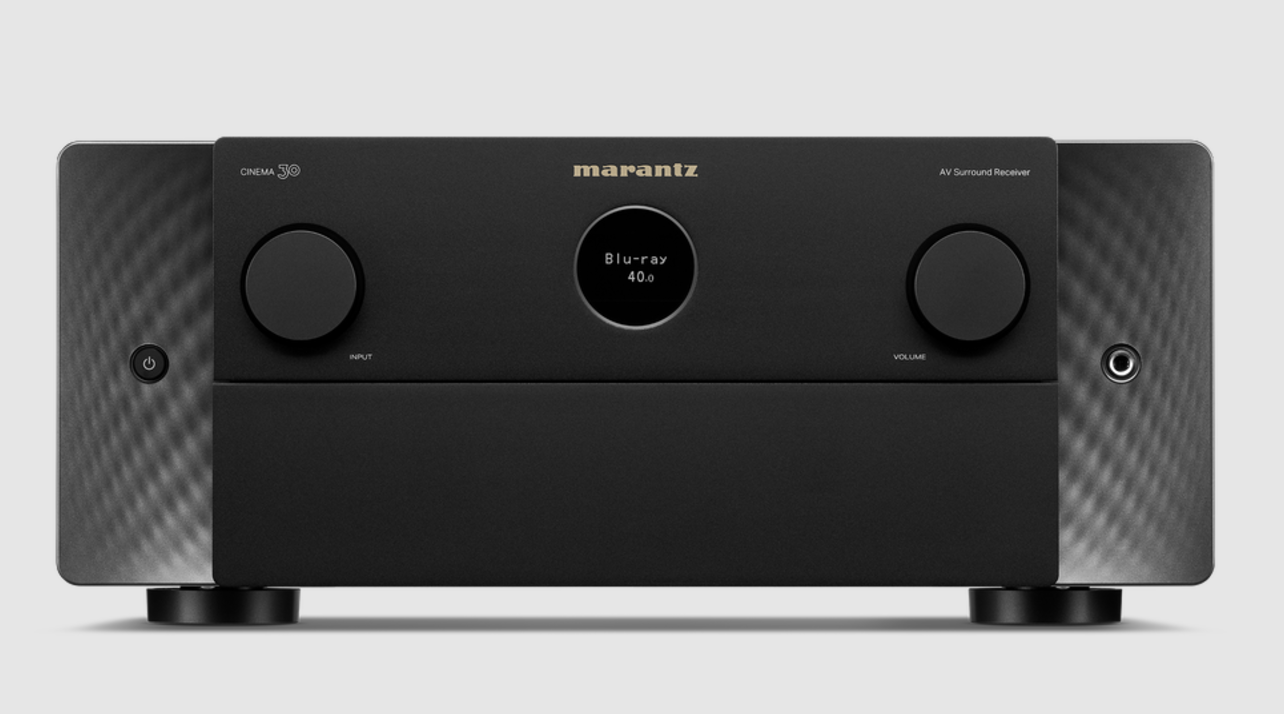

We'd like you to meet the Cinema 30 11.4 Channel AV Receiver
Reference 11.4 Channel from Marantz - where excellence begins and ends with performance...
CINEMA 30 is the most refined AV Receiver Marantz has created and redefines premium home theatre sound. Engineered with proprietary technology optimised from decades of rich heritage, its 11.4 channels deliver unrivalled performance and can power even large-scale home theatres with ease.
Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theatres.
Timeless, Modern Style
Excellence is heard and seen. CINEMA 30 is meticulously crafted in Japan with authentic materials in a modern style, befitting its rich heritage and stunning performance.
Engineering Without Compromise
HiFi performance technologies like HDAM SA-2, and more elevate the CINEMA 30 to performance levels seldom found in an AVR.
Sound Master Tuned and Calibrated for You
HiFi performance technologies like HDAM SA-2, and more elevate the CINEMA 30 to performance levels seldom found in an AVR.
Technology Leader
Seven HDMI inputs, plus digital, analog, and phono inputs – even analog video plus loudspeaker and pre-amp outputs – ensure connectivity to virtually any components you have
Key Features
- Crafted in Shirakawa, Japan
- 140 Watts per Channel
- 7 HDMI Inputs (all 8K) plus eARC
- 8K & Dolby Atmos
- High Power & Low Distortion
- 11 Channels & Countless Configurations
- No Compromise Engineering
- Sound Master Tuned & Calibrated For You
- Dolby Atmos® and Dolby Atmos Height Virtualisation Technology
- DTS:X® and DTS Virtual:X™
- High-Resolution Audio Support
- HEOS® Built-in
- Roon Tested
- HDMI ARC/eARC
- 8K HDMI Connectivity
- Advanced Audyssey MultEQ XT
- Class A/B Amplifier Topology
- Google Voice Assistant
Technical Specifications
Power Amplifier
- Number of Powered Channels - 11
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive -
- Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) - 140 W
- Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) - 175 W
- Power Output (6 ohm, 1 kHz, 10% 1ch Drive) - 250 W
- 70% Guarantee - Yes
- Discrete Power Amplifier - Yes
- Amplifier Topology - Class A/B
- Current Feedback Topology - yes
- Bi-Amp - Assignable
Multichannel Surround Technologies
- DTSDTS HD Master, DTS:X, DTS:X Pro, DTS Neural:X, DTS Virtual: - X
- Dolby - Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualisation, Dolby Atmos Music, Dolby Surround
Other
- Max Number of Processing (Preamp) Channels - 13.4
- IMAX Enhanced - Yes
- Auro 3D - Yes
- Audyssey DSX - Yes
- Multichannel Stereo - Yes
Inputs Outputs
- Composite In / Out - 2 / 0
- Component In / Out - 1 / 0
- HDMI In / Out - 7 / 3
- Multi-Room Video Out via HDMI - 0 / 0
- Analog In / Fixed Level Out - 3 in / 0 out
- Phono (MM) In - Yes
- Digital In: Optical / Coaxial - 2 / 2
- Multi-Room Out: analog / digital - 2 / 0
- Multichannel Preamp Out - 7.2
- Subwoofer Out - 4 (independent)
- 7.1 multichannel input - No
- Number of Speaker Terminals - 13
- Speaker A / B - assignable
- Multi-Room Speaker Terminal - assignable
- Front Inputs - USB-A
- USB Audio - Yes / No / No
- FM Tuner with RDS - Yes
- DAB+ Tuner - No
- Multi-Room Video Out: Video / HDMI - 7/3
- analog In/out - 6 / 0
- Multichannel Pre Out - Yes (13.4)
- Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB - No / No / No / No / Yes
HDMI
- Total HDMI Inputs / No. Support 8K - 6 / 3
- HDCP2.3 support - Yes
- HDMI Outputs: Main / Zone - 2 / 1
- Analog to HDMI Video Conversion - No
- HDMI Upscaling - 1080P/4K to 8K
Max resolution @ framerate
- Audio Return Channel - ARC, eARC
- Video Dynamic Range - HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
- ALLM (Auto Low Latency Mode) Pass-through for gaming - Yes
- Variable Refresh Rate / Quick Frame Transport - Yes / Yes / No
- HDMI Pass-Through in Standby Mode - Yes
- CEC - Yes
- DSD Audio over HDMI - No
- Auto LipSync - Yes
- HDMI Inputs: Back / Front - 7 / -
- Video Conversion Analog -> HDMI - Yes
- HDMI to HDMI Scaling - 1080P/4K to 8K
- HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB - Yes / Yes
- 8K/60Hz AB / 4K/120Hz AB Pass-through In/Out - 7 / 2 (up to 40Gbps)
- HDMI 2.0: 3D / 4K / CEC / ARC - Yes / Yes / Yes / Yes
- HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR - Yes / Yes / Yes / Yes / Yes
- Variable Refresh Rate / Quick Flame Transport / Quick Media Switching - Yes / Yes / No
- 8K signal pass-through / scaling / GUI overlay - o / o / o
- 4K Signal Pass-Through / Scaling / GUI Overlay - o / o / o
- DSD Audio Capability - Yes
Performance Technologies
- Copper Plated Chassis - Yes
- Toroidal Power Supply Transformer - Yes
- Hyper Dynamic Amplifier Modules (HDAM) (List version) - Yes
- Pure Direct Mode - Yes
- Gold Plated RCA Terminals - Yes
- Clock Jitter Reducer - Yes
Acoustic Room Correction
- Audyssey - MultEQ XT32
- Audyssey Dynamic EQ / Dynamic Volume - Yes / Yes
- Audyssey LFC - Yes
- Dirac Live Support - Yes
- Variable Cross Over - Yes
- Optimised Bass Redirection - Yes
- Bass Sync - Yes
- Dirac Live Upgradability - Yes
Music File Support
- Lossy Formats - MP3 / WMA / AAC
- Lossless formats - FLAC HD 192/24 / WAV 192/24 / ALAC 192/31
- DSD Audio - 2.8 MHz / 5.6 MHz
- Gapless Playback - FLAC, WAV ,ALAC ,DSD
- Compressed Audio Enhancer: MDAX2 - Yes
- Network Audio Sharing - Yes
Streaming Services
- HEOS Multi-room and Streaming - Yes
- AirPlay Audio StreamingAirPlay - 2
- Internet Radio - TuneIn
- Spotify - *Spotify Connect
- Pandora - No
- SiriusXM - Yes
- Other Streaming Services - *Amazon Music HD/ Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix
- Roon tested - Yes
Network Connectivity
- Ethernet Ports - Yes
- Wi-Fi (include version / band) - Yes
- Bluetooth (Include version) - Yes
- Bluetooth Re-transmit for Bluetooth headphones - Yes
Smart Home Integration and Control
- Voice Assistant Compatibility - Alexa / Google Voice Assistant / Apple HomePod
- App for Smart Phones & Tablets (iOS & Android) - Marantz AVR App
- HEOS Multi-Room Integrated - Yes
- HEOS Link Compatibility: IR/ IP - Yes /Yes
- Multi-Room zones - 2
- Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog - 2 Ch / 2 Ch / Yes/Yes
- Zone Audio Output: Speaker / Preout - Yes / Yes
- Zone HDMI Output from HDMI Source - Yes
- Control ConnectivityIP Control / RS232 Control / Web Control / App Control
- IR Flasher In - Yes
- Marantz Remote Bus - Yes
- DC Trigger Output - 3
- HDMI Diagnostics - Yes
Others
- Front Display - 2 line FLD + port hole OLED
Primary Display Size (diagonal in/mm)
Secondary Display Size (diagonal in/mm)
- GUI Languages - 3
- Setup Assistant - Yes
- Smart Select on Remote - Yes
- Firmware Update by Network / USB - Yes / Yes
- ECO Mode - Yes
- Auto Power off - Yes
- Sleep Timer - Yes
GUI Overlay on HDMI
- CEC - Yes
- Auto Speaker Setup by Microphone - Audyssey MultEQ XT32Dirac Live (upgrade)
- Graphic User Interface - GUIModern HD GUI - Modern HD GUI
- Smart Select - Yes
General
- Available Colours - Black/Silver-Gold
- Metal Front Panel - Yes
- System Remote Control - RC-051SR
- Power Consumption in W - 780
- Power Consumption No-Sound (ECO on/off) in W - 65 W / 110 W
- Standby Consumption in W - 0.2
- CEC Standby Consumption in W - 0.5
- Network Standby Consumption in W - Less than 2.0
- Pre-Programmed / Learnable / LCD Display - Yes / Yes / Yes
Maximum Dimensions
- Antenna: Horizontal:(W x D x H) in mm - 442 x 457 x 189
- Antenna: Vertical :(W x D x H) in mm - 442 x 457 x 257
- W/o Antenna: (W x D x H) in mm - 442 x 447 x 189
- Weight in kg - 8.7
In The Box
- Main unit
- Remote control & batteries
- AM/FM antennas
- Wire labels
- Quick start guide
- Audyssey microphone
- Cardboard microphone stand
- 2 External Detachable Antennas
- AC cord
*This information has been obtained from Manufacturers website. We advise that Features & Specifications are subject change from Manufacturer without notice.
E&OE
