Hegel D50 DAC aka The Raven

The Hegel D50 DAC, affectionately named “The Raven,” is a groundbreaking addition to the world of high-end digital-to-analog converters. Designed with a minimalist philosophy, this device strips away unnecessary features to focus solely on delivering the purest possible audio experience. With its precision engineering, advanced noise reduction techniques, and meticulous craftsmanship, the D50 sets a new benchmark for audiophiles seeking unparalleled sound quality. Let’s take an in-depth look at what makes this DAC so extraordinary.

Minimalist Design Philosophy

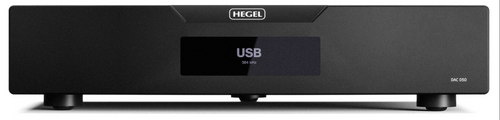

The Hegel D50 DAC embodies simplicity and elegance in both form and function. Its sleek black aluminium chassis is understated yet purposeful, designed to eliminate distractions and focus entirely on performance. The front panel features a thick milled aluminium plate that conceals physical buttons for a clean and seamless appearance. A bright yet unobtrusive display provides essential information without drawing attention away from the music.

This minimalist approach extends to its functionality as well. Unlike many modern DACs that integrate streaming capabilities, preamplifiers, or network inputs, the D50 is dedicated exclusively to digital-to-analog conversion. By avoiding additional components that could introduce noise or compromise performance, Hegel has created a machine that excels at its singular purpose: converting digital signals into breathtakingly accurate analog sound.

Advanced Noise Reduction Technology

One of the standout features of the Hegel D50 is its exceptional ability to minimise electrical noise—a critical factor in achieving pristine audio quality. To accomplish this, Hegel employs two low-noise toroidal transformers within the unit:

1. Transformer 1: Dedicated to powering noisier digital processes and standby functionality.
2. Transformer 2: Reserved for sensitive analog and digital components.

Both transformers are housed in thick steel shielding to prevent interference and are further filtered for optimal performance. This dual-transformer design ensures that each section of the DAC receives clean power without cross-contamination.

Additionally, advanced filters on the power input eliminate noise from mains electricity. When connected to a grounded power outlet, these filters can even enhance the performance of other audio equipment sharing the same circuit—a unique feature rarely seen in consumer-grade DACs.

Precision Engineering for Superior Sound

At the heart of the Hegel D50 lies a state-of-the-art DAC chip mounted on a separate board above the main circuitry. This elevated placement reduces noise and interference while ensuring short and direct signal paths for maximum fidelity.

To address timing errors (jitter) commonly associated with digital audio processing, Hegel has implemented multiple clocking systems:

• AES/EBU Input: Features an RS422 receiver balanced by a transformer, capable of handling both weak and strong signals with minimal time delay.
• SPDIF Inputs: Signals are unpacked on a custom-designed card before being reclocked using three dedicated master clocks:
  • One clock for SPDIF signals.
  • Two separate clocks for USB signals (48kHz and 44.1kHz sample rates).

These precise clocking mechanisms ensure accurate timing during digital-to-analog conversion, resulting in an exceptionally clean and natural soundstage.

Wide Format Support

The Hegel D50 supports an impressive range of audio formats to cater to diverse listening preferences:

• PCM up to 32-bit/384kHz
• DSD256 (DoP)
• MQA decoding

While optical inputs are limited to 24-bit/96kHz resolution due to bandwidth constraints, AES/EBU and coaxial inputs support up to 24-bit/192kHz as well as DSD64 (DoP). This versatility makes the D50 compatible with virtually any high-resolution audio source available today.

Solid Build Quality

Craftsmanship is another area where the Hegel D50 shines. Its aluminium housing not only provides durability but also contributes to improved sound performance by minimising vibrations. Premium connectors ensure reliable signal transmission over time, while aluminium feet with rubber soles provide stability on any surface.

Every aspect of the construction reflects Hegel’s commitment to excellence—from its robust materials to its thoughtful design choices aimed at enhancing both aesthetics and functionality.

Effortless Usability

Despite its technical sophistication, operating the Hegel D50 is refreshingly simple. The intuitive interface allows users to switch between inputs effortlessly while displaying relevant information clearly on its screen. Whether you’re an experienced audiophile or new to high-end audio equipment, you’ll appreciate how easy it is to integrate this DAC into your setup.

We thing that its a Masterpiece in Digital Audio Conversion

The Hegel D50 DAC represents a bold step forward in digital audio technology by focusing exclusively on what matters most: delivering impeccable sound quality through precise engineering and innovative design choices. From its advanced noise reduction techniques to its meticulous craftsmanship, every detail has been carefully considered to create an unparalleled listening experience.

Whether you’re rediscovering old favourites or exploring new genres, “The Raven” invites you into a world where music comes alive with stunning clarity and depth—proving once again why Hegel remains at the forefront of high-end audio innovation.
