Meet Audio Technica's AT-OC9XML

Moving Coil Phono Cartridge

The AT-OC9XML is a premium moving coil phono cartridge with a 2.2 x 0.12 mil Micro-linear stylus.

The OC9X range features a new Dual Moving Coil structure, which enables the audio information in the record grooves to be separated to the left and right channels with pinpoint accuracy.

This improved channel separation results in a more precise stereo image and wider frequency response. The moving coil wires in all OC9X Series cartridges are made from PCOCC (Pure Copper by Ohno Continuous Casting), for optimum signal purity.

The AT-OC9XML utilises a neodymium magnet with a Permendur yoke, a configuration that provides high-saturation magnetic flux density and optimises the concentrated magnetic field of the coil gap, for improved reproduction of the delicate musical signals generated by the cartridges.

This micro linear stylus model has been upgraded with a boron cantilever carefully selected to keep unwanted vibrations to a minimum and reduce internal resonances for clearer, more detailed audio reproduction.

The AT-OC9XML’s transducer engine is mounted onto a rigid aluminium body to help reduce unwanted internal vibrations and maintain sonic clarity. The cartridge body is pre-threaded, enabling it to be easily mounted to a headshell or tonearm with just two screws (no mounting nuts for the screws are required). Each OC9X Series cartridge is supplied with mounting hardware, a stylus brush and other accessories.

Product Features

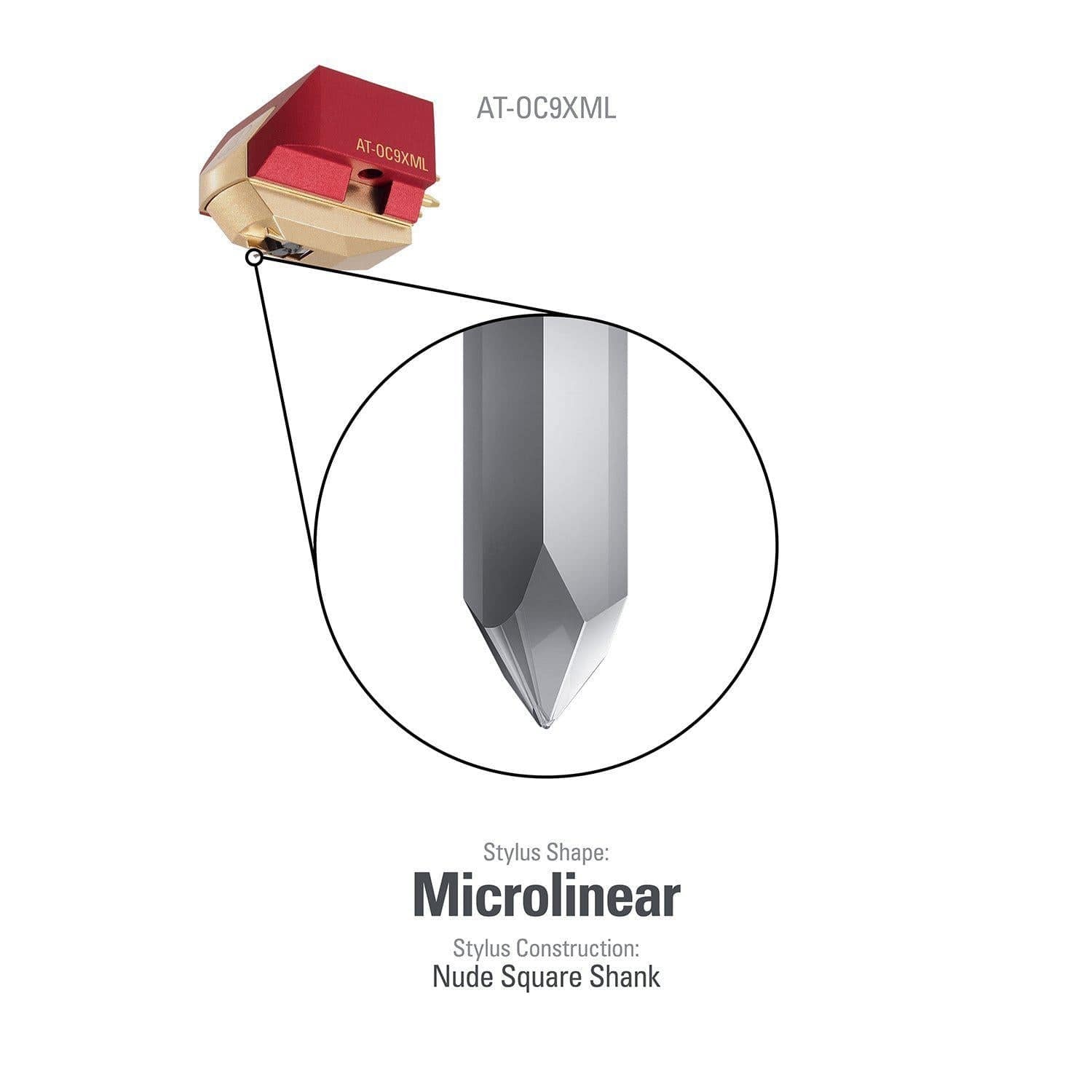

•  2.2 x 0.12 mil Micro linear stylus
•  Nude boron cantilever
•  Utilises a neodymium magnet with a Permendur yoke for improved reproduction of the delicate musical signals
•  Transducer engine is mounted onto a rigid aluminium body to reduce unwanted vibrations and maintain sonic clarity
•  Threaded inserts in cartridge body enable cartridge to be mounted to headshell with just two screws – no nuts required

Technical Specifications

Type
Dual Moving Coil

Body Material
Aluminium

Mounting Feature
Threaded inserts

Frequency Response
20 to 47,000 Hz

Channel Separation
27 dB (1 kHz)

Output Channel Balance
1.0 dB (1 kHz)

Output Voltage
0.4 mV (at 1 kHz, 5 cm/sec)

Vertical Tracking Angle
20 degrees

Vertical Tracking Force Range
1.8 to 2.2 g (standard 2.0 g)

Stylus Shape
Micro-linear

Stylus Curvature Radius
2.2 x 0.12 mil

Stylus Construction
Nude square shank

Cantilever
0.28 mm Ø nude boron

Static Compliance
20 x 10^(–6cm) / dyne

Dynamic Compliance
16 x 10^(–6 cm) / dyne (100 Hz)

Wire Used for Coil
PCOCC

Terminal Pins
Brass

Recommended Load Impedance
Min 100 Ohm

Coil Impedance
12 Ohm

DC Resistance
12 Ohm

Coil Inductance
25 uH (1 kHz)

Cartridge Weight
7.6 g

Dimensions
17.3 (H) x 16.8 (W) x 25.7 (L) mm

Mounting
1/2" Centres

Included Accessories

• non magnetic screw driver
• 1 brush
• 2 washers
• 4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
• 1 plastic protector
