Audio Technica AT-LPW40WN Turntable

We'd like you to meet the AT-LPW40WN

A stunningly beautiful  Walnut turntable from Audio Technica

The AT-LPW40WN is a fully manual, belt-drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl. It features an aesthetically pleasing anti-resonance MDF (medium density fibreboard) plinth with simulated walnut wood veneer to limit low-frequency acoustical feedback and a sensor-monitored motor to ensure accurate platter rotation speeds at 33-1/3 and 45 RPM.

The turntable includes a straight carbon-fibre tonearm with adjustable tracking force and an AT-HS4 universal ½"-mount headshell with an AT-VM95E Dual Moving Magnet phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

The AT-LPW40WN is equipped with a built-in selectable phono preamp and a detachable dual RCA output cable to enable direct connection to components with or without a dedicated phono input.

Using its expertise and building on its rich heritage, Audio Technica is introducing a new wood-based, belt-drive turntable, the AT-LPW40TN, both with Audio-Technica ’s natural, balanced and refined sonics signature and, according to Audio Technica, delivering high-fidelity audio performance far beyond its price level.

Alongside an aesthetically pleasing, interior-friendly design and profile, the turntables’ wood-based chassis have been chosen for their natural acoustic and anti-resonance properties. The Audio Technica uses high-density wood which minimises any feedback generated from low-frequency energies. Unwanted vibrations are further reduced by a professional-level, anti-resonance, die-cast aluminium platter with a rubber mat.

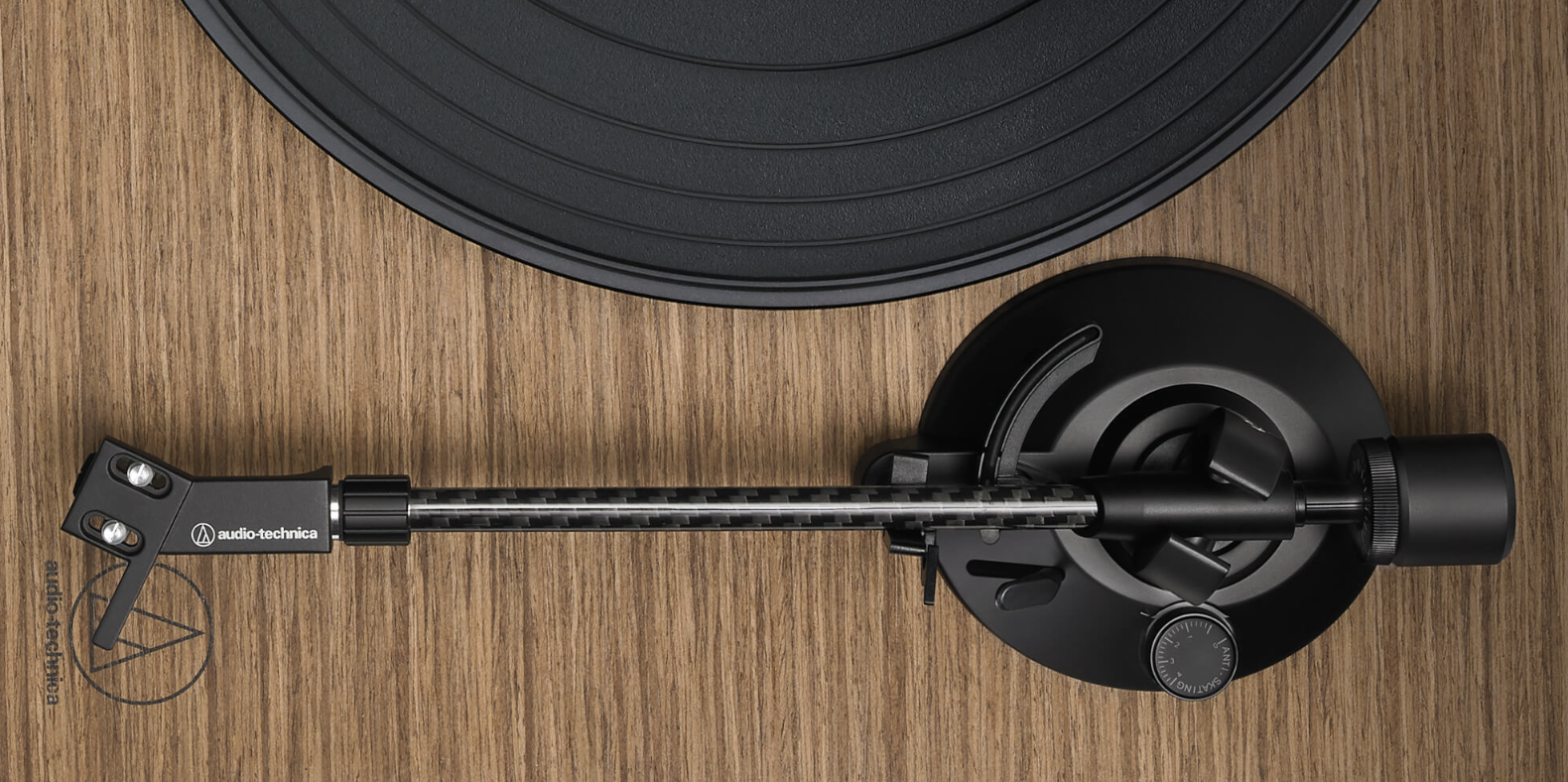

The turntable includes a straight carbon-fibre tonearm which offers superior rigidity for greater control when playing. It is fitted with an AT-VM95E Dual Moving Magnet phono cartridge from Audio Technica's recently introduced VM95 cartridge series. The VM-95 body is an example of Audio-Technica’s dual-magnet design and in the 95E is partnered with a bonded elliptical stylus that is mounted on an aluminium pipe-style cantilever. The body has been designed to reduce resonance and feels a whole lot more substantial than the original AT-95E.

The AT-VM95E is a significant step forward. It brings an extra helping of refinement and civility that doesn’t affect its ability to get stuck in and enjoy itself. Vocals are the main focus and the level of tonal realism is entirely convincing. Audio Technica claims the AT-VM95E improves on the AT95E’s output level, dynamic range and frequency response, with its aluminium cantilever, elliptical stylus and new coil design delivering an increased output of 4mV.

Product Features

• Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
• Motor features a speed-sensor system to maintain accurate platter rotation speed
• Fully manual operation
• Adjustable dynamic anti-skate control
• Professional anti-resonance, die-cast aluminium platter with rubber mat
• AT-HS4 universal ½"-mount headshell and AT-VM95E Dual Moving Magnet phono cartridge with 0.3 x 0.7 mil elliptical stylus
• AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
• Straight carbon-fibre tonearm with hydraulically damped lift control and lockable rest
• Anti-resonance MDF (medium density fibreboard) plinth with walnut simulated wood veneer
• Built-in switchable phono pre-amplifier for phono or line-level output
• AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain

Technical Specifications

Type
2-speed, fully manual operation

Motor
DC servo motor w/speed stability control

Drive Method
Manual Belt-drive Turntable

Speeds
33⅓ & 45 RPM

Wow & Flutter
< 0.15 % WRMS (33 RPM) at 3 kHz

Signal-to-Noise Ratio
> 60 dB

Output Level

Pre-Amp PHONO
4.0 mV nominal at 1 kHz, 5 cm/sec

Pre-Amp LINE
200 mV nominal at 1 kHz, 5 cm/sec

Phono Pre-Amp Gain
35 dB nominal, RIAA equalised

Power Supply Requirements
100 to 240 V, 50/60 Hz

Finish
Walnut veneer

Dimensions (WxHxD)
420 x 117 x 340 mm

Weight
5.0 kg

Warranty
1 Year

In the Box

• At-LPW40WN turntable
• AT-HS4BK Headshell
• AT-VM95E Dual Moving Magnet Cartridge with Elliptical Stylus
• Detachable RCA Cable
• AC adapter
• 45 RPM adapter
• Counterweight
• Rubber Mat

*This information has been obtained from Manufacturers website. We advise that Features & Specifications are subject change from Manufacturer without notice.

E&OE
