Name: Arcam AVR5 Class AB AV Receiver
Brand: Arcam
SKU: 4934
Price: 3995 AUD
Availability: InStock

Arcam AVR5 Class AB AV Receiver

Availability:

Usually Ships in 48 - 72 Hours

Shipping:

Free Shipping

Description
Warranty Information

Description

Presenting the Arcam AVR5 Class AB AV Receiver

Rich Musicality + Immersive Sound = Stunning Realism

The design of the HDA range draws upon all of Arcam’s experience as one of the UK’s most respected audio companies, to produce Arcam’s best performing range of audio products yet – using the best quality components and engineering practices, the HDA range is designed and built to give you years of listening enjoyment.

The Arcam AVR5 is a high-performance audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. Native 12-channel decoding of immersive audio from Dolby Atmos and DTS:X, the AVR5 can deliver incredible theatre experiences.

The Arcam AVR5 is designed with a passion for music and movies, bringing both to life with truly high fidelity. The AVR5 features an over engineered power supply and transformer for real world power with low noise. The Class AB amplifiers are based upon those in Arcam stereo amplifiers, guaranteeing musicality otherwise not heard from other AV receivers.

The performance and musicality can be accessed immediately with integrated streaming using Apple Airplay2, Google Chromecast, Bluetooth with aptX®HD, Spotify Connect, and UPnP with the MusicLife app.

Your Arcam AVR5 comes Dirac Ready, fully prepared to run Dirac Live, the world’s most advanced room correction software.

Dirac Live® Bass Control aggregates measurement and location data from a subwoofer and the main speakers to determine how a system’s bass is best reproduced throughout the room.

Product Features

Dolby Atmos & DTS:X 7.1.4 decoding
4K (UHD) HDMI2.0b with HDCP2.2

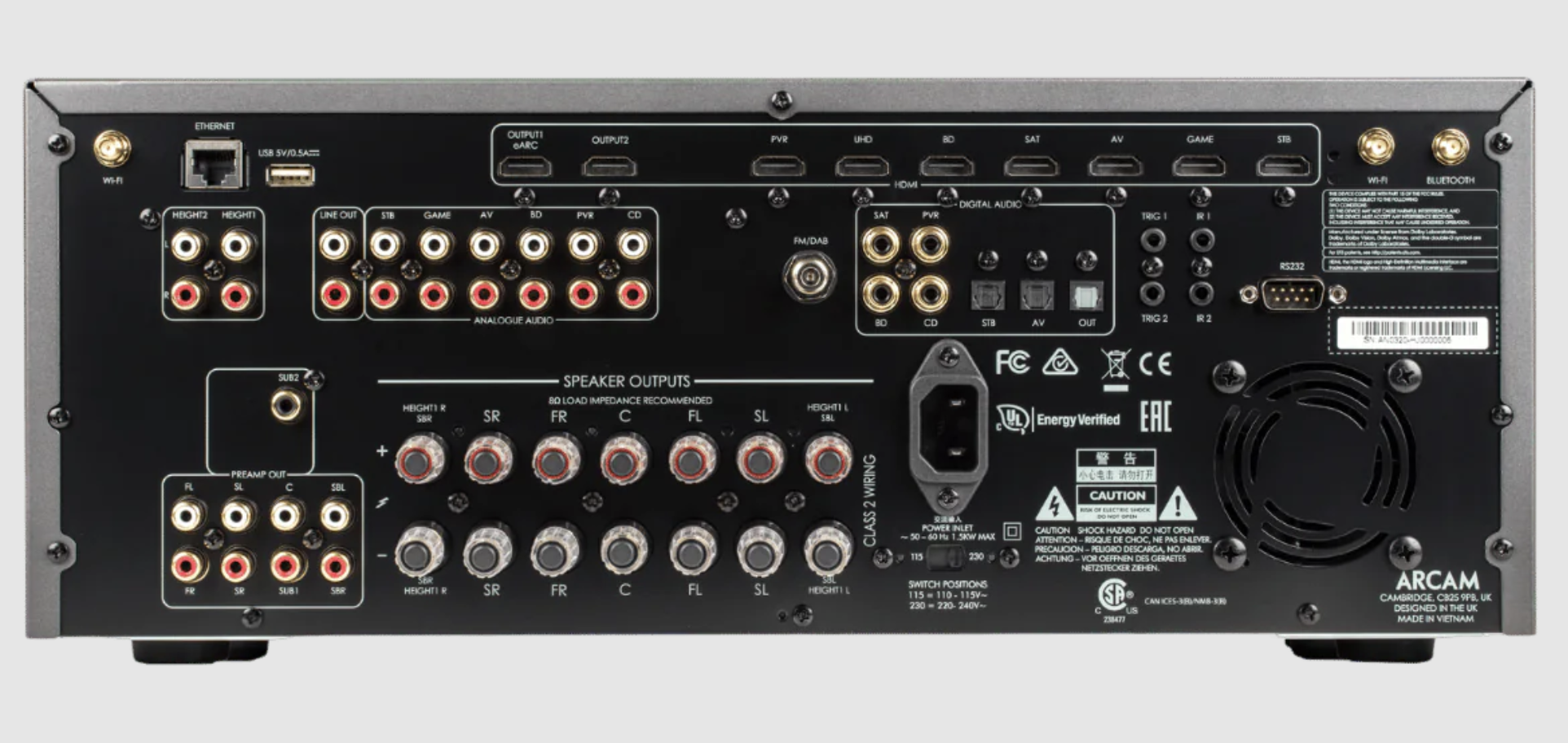

7 HDMI inputs, 2 HDMI outputs, eARC compatible
Ready for Dirac Live® room correction
ESS 9026PRO audiophile DACs
Class AB power amplification
Uses frame-type transformer
Wifi / Ethernet, RS232 and IR control
Apple Airplay2 and Google Cast for streaming audio
Bluetooth aptX®HD
Free MusicLife iOS and Android UPnP streaming app
Supports MQA
Roon Ready

Technical Specifications

CONTINUOUS POWER OUTPUT PER CHANNEL 8/4 Ω

2 Channels Driven, 20 Hz - 20 kHz, <0.02% THD
80 W / 100 W

2 Channels Driven, 1 kHz, 0.02% THD
85 W / 120 W

7 Channels Driven, 1 kHz, 0.02% THD
60 W / 85 W

Residual Noise & Hum (A-Wtd)
<0.15 mV

STEREO LINE INPUTS

Maximum Output
4.5 Vrms

Nominal Sensitivity (User Adjustable)
1 V
2 V
4 V

Input Impedance
47 kΩ

Signal/noise ratio (A-wtd ref 100W) Nominal/Stereo Direct
93 dB / 110dB

Frequency Response
20 Hz — 20 kHz ± 0.2 dB

PREAMPLIFIER OUTPUTS

Nominal Output Level
0.8 Vrms

Out Impedance
560 kΩ

THD+N (20 Hz — 20 kHz)
-100 dB

HEADPHONE OUTPUT

Maximum output level into 32 Ω
5 Vrms

Out Impedance
<100 Ω

GENERAL

Mains voltage
110–120 V or 220–240 V, 50–60 Hz

Power consumption (Maximum)
1.5 kW (Thermal Dissipation Approx. 5200 BTU/Hour)

Power consumption (Idle, Typical)
90 W (Thermal Dissipation Approx. 340 BTU/Hour)

Power consumption (Standby)
<.5 W

Dimensions W x D x H (Including Speaker Terminals & Feet)
433 x 425 x 171 mm

Weight (net)
16.5 kg

Weight (packed)
19.8 kg

Supplied accessories
Mains lead
Remote control
2 x AAA batteries
Manual
DAB/FM Aerial
3 x Wi-Fi / Bluetooth Antennas
Calibration Microphone
USB Cable

Dirac Live® Bass Control
Dirac Live® Bass Control is available at an additional cost via the Dirac website:https://www.dirac.com/online-store/arcam-avr5/

*This information has been obtained from Manufacturers website. We advice that Features & Specifications are subject change from Manufacturer without notice.
