Arcam AVR21 HDMI 2.1 High Power Class AB AV Receiver
- Availability:
- Usually Ships in 48 - 72 Hours
- Shipping:
- Free Shipping
Description

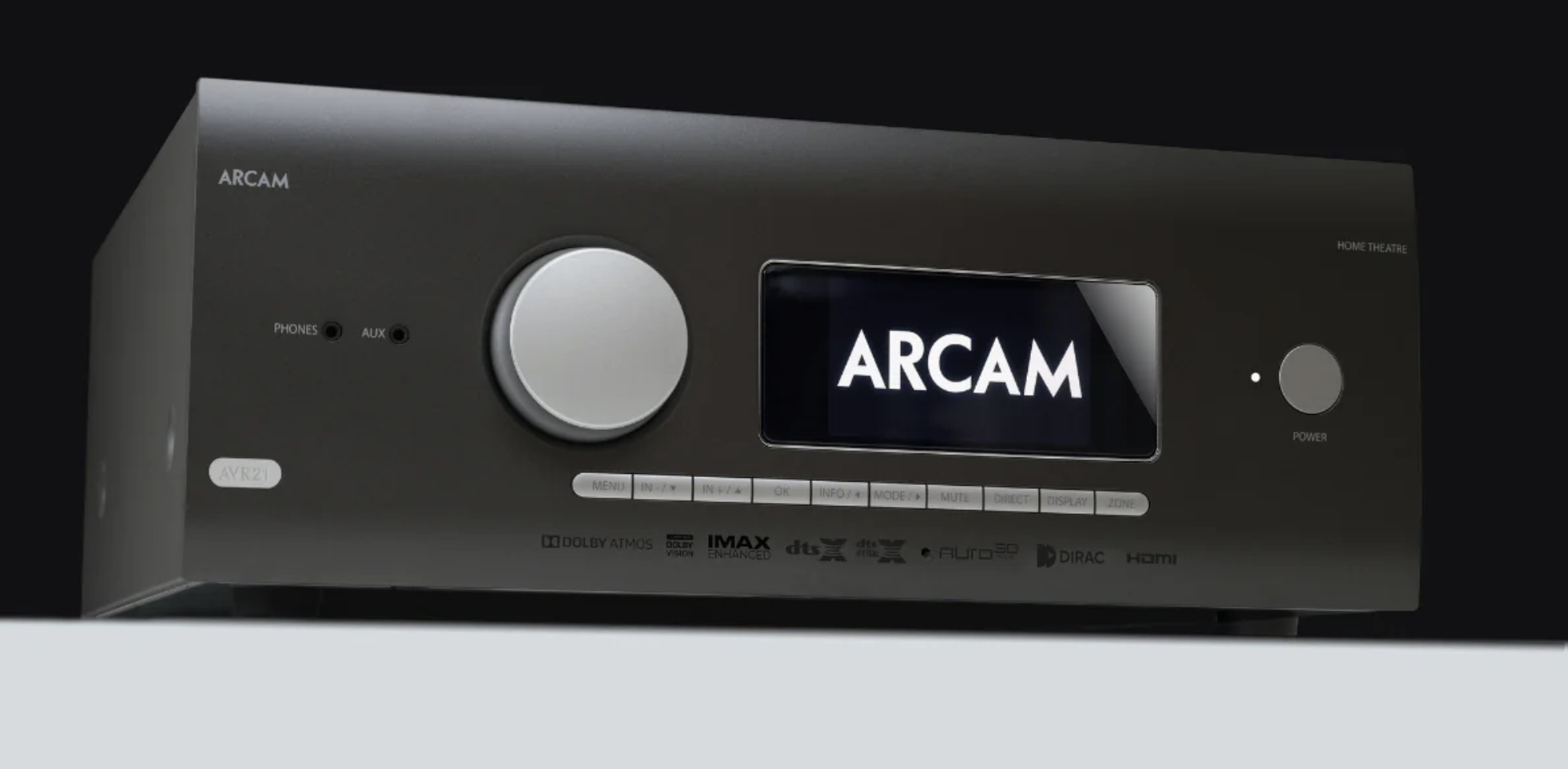

Meet the Arcam AVR21 HDMI 2.1 High Power Class AB AV Receiver
Rich Musicality + Immersive Sound = Stunning Realism
The design of the HDA range draws upon all of Arcam’s experience as one of the UK’s most respected audio companies, to produce Arcam’s best performing range of audio products yet – using the best quality components and engineering practices, the HDA range is designed and built to give you years of listening enjoyment.
The AVR21 is a high-power, audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. With native 16-channel decoding of immersive audio from Dolby Atmos, DTS:X and Auro-3D, the AVR21 can deliver incredible theatre experiences.
The Arcam AVR21 is designed with a passion for music and movies, bringing both to life with high fidelity and dynamics. The AVR21 features an over engineered toroidal transformer for real world power with low noise. The 7 channels of Class AB amplification are based upon those in Arcam stereo amplifiers, guaranteeing musicality otherwise not heard from other AV receivers.
The performance and musicality can be assured with Dirac Live® room optimisation included, and accessed instantly with integrated streaming using Apple®Airplay2, Google Chromecast®, Bluetooth with aptX®HD, Spotify Connect, Tidal Connect and UPnP with the MusicLife app.
Dirac Live® Bass Control aggregates measurement and location data from each subwoofer as well as the main speakers to determine how a system’s bass is distributed throughout the room.
Product Features
- 16 Channels of Dolby Atmos, DTS:X, and AURO-3D Decoding
- 7 HDMI Inputs, 3 HDMI Outputs including Zone 2. eARC Compatible
- HDMI 2.1 with HDCP2.3
- All inputs support 8K@60FPS, and 4K@120FPS
- Supports Dolby Vision, HDR10+, HDR10, and HLG
- Includes Dirac Live Room Correction
- Dual ESS 9026PRO Audiophile DACs with ESS Reference Voltage Regulators
- 7 Chanels of high power Class A/B Amplification
- Wi-Fi / Ethernet, RS232, and IR Control
- Google Chromecast built-in for streaming audio
- Apple Airplay2
- Bluetooth aptX HD
- Free MusicLife iOS and Android UPnP app
- Supports MQA
- Roon Ready
Technical Specifications
STEREO LINE INPUTS
Maximum Output
4.5 Vrms
Nominal Sensitivity (User Adjustable)
1 V
2 V
4 V
Input Impedance
47 kΩ
Signal/noise ratio (A-wtd ref 100W)
100dB
10dB Stereo Direct
Frequency Response
20 Hz — 20 kHz ± 0.2 dB
PREAMPLIFIER OUTPUTS
Nominal Output Level
1 RMS (max. 5V RMS)
Out Impedance
560 kΩ
THD+N (20 Hz — 20 kHz)
-100 dB
HEADPHONE OUTPUT
Maximum output level into 32 Ω
5 Vrms
Out Impedance
<100 Ω
GENERAL
Mains voltage
110–120 V or 220–240 V, 50–60 Hz
Power consumption (maximum)
1500 W (Thermal Dissipation Approx. 5200 BTU/Hour)
Power consumption (Idle, Typical)
100 W (Thermal Dissipation Approx. 350 BTU/Hour)
Power consumption (Standby)
<.5 W
Dimensions W x D x H (Including Speaker Terminals & Feet)
433 x 425 x 171 mm
Weight
16.6 kg
Supplied accessories
Mains lead
Remote control
2 x AAA batteries
Quick Start Guide (full Manual available online)
DAB/FM Aerial
3 x Wi-Fi / Bluetooth Antennas
Calibration Microphone
USB Cable
Dirac Live® Bass Control
Dirac Live® Bass Control is available at an additional cost via the Dirac website: https://www.dirac.com/online-store/arcam-avr21/
*This information has been obtained from Manufacturers website. We advice that Features & Specifications are subject change from Manufacturer without notice.
E&OE
